DISCOVERY 300 - REAR BUMPER WITH / WITHOUT WINCH

We have here the first images of the new models of rear bumper for Discovery 300.

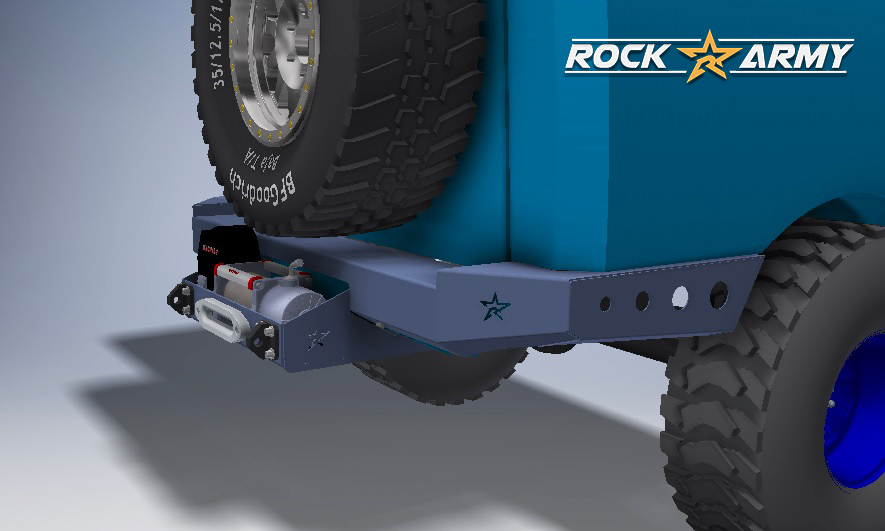

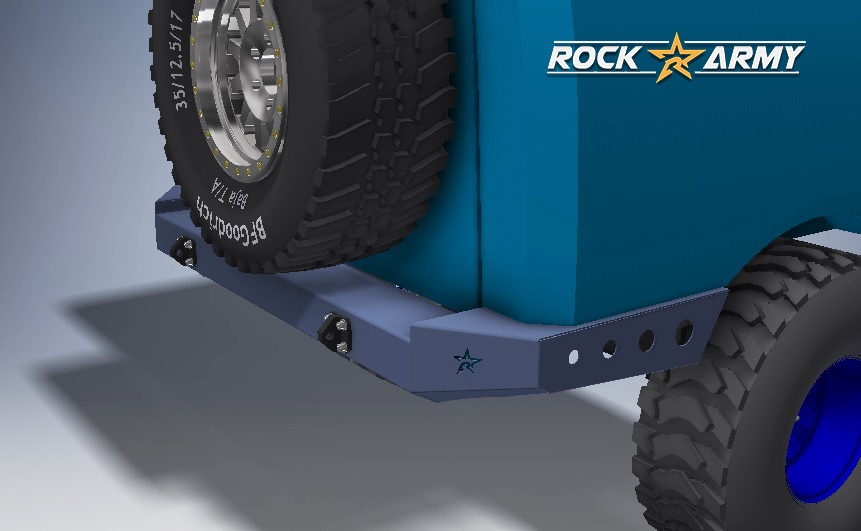

Two models to cover all needs and uses. A simple model for traditional use and a more complete one with removable winch module.

Both models are equipped with quick anchoring holes for hi-lift on the sides, ports for bracket holders, 6 attachment points in the case of the winchless model and 14 attachment points in the case of the winch model.

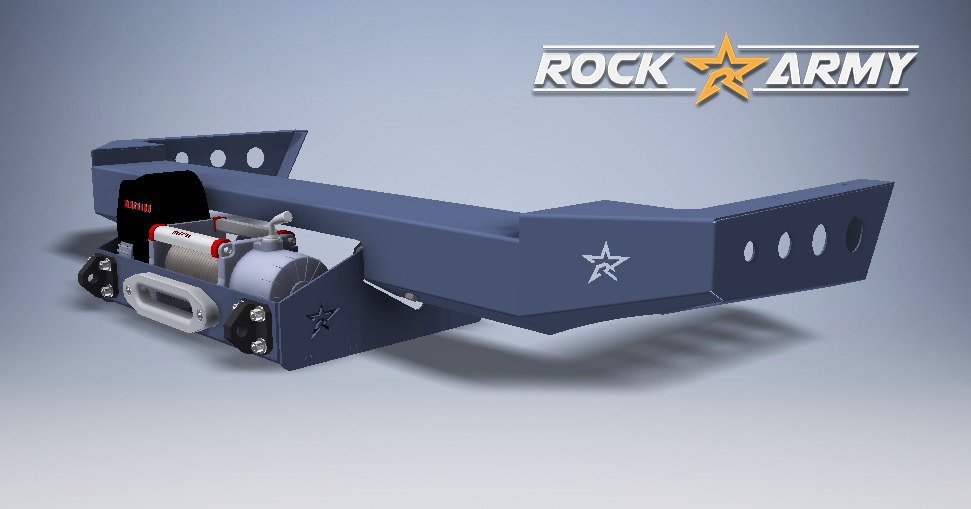

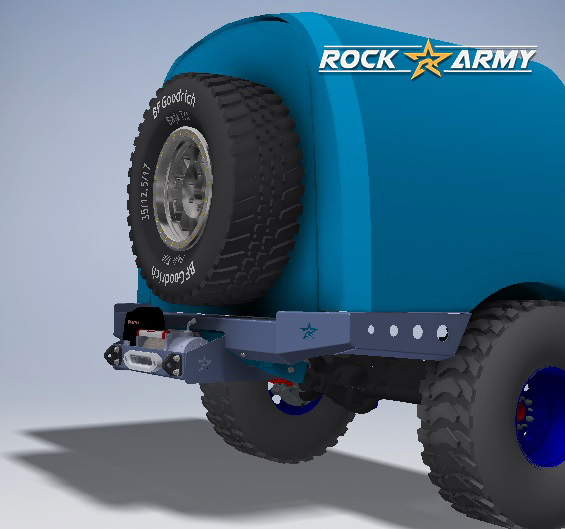

The model with winch has been designed with independent support to be able to disassemble the winch module in a simple and fast way. That way you can leave with your discovery leaving the winch at home (as appropriate) and leave the bumper mounted to be able to circulate without problem.

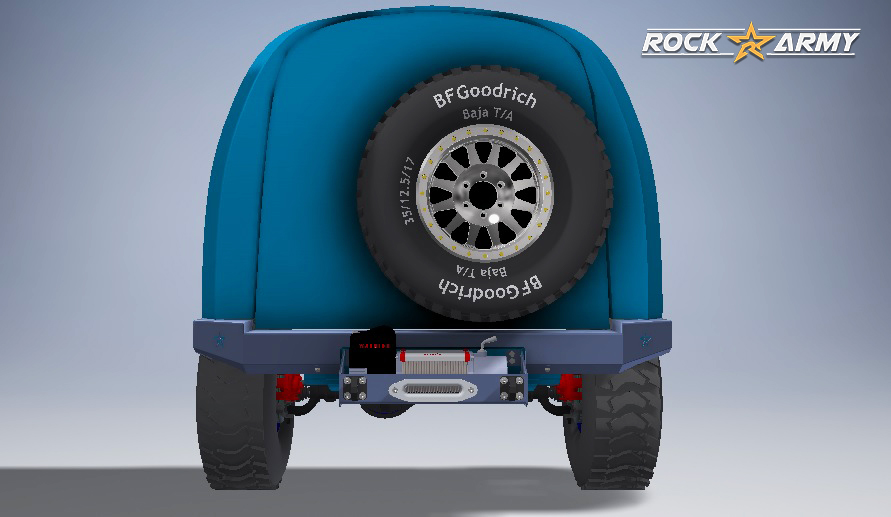

Rear view (model with winch)

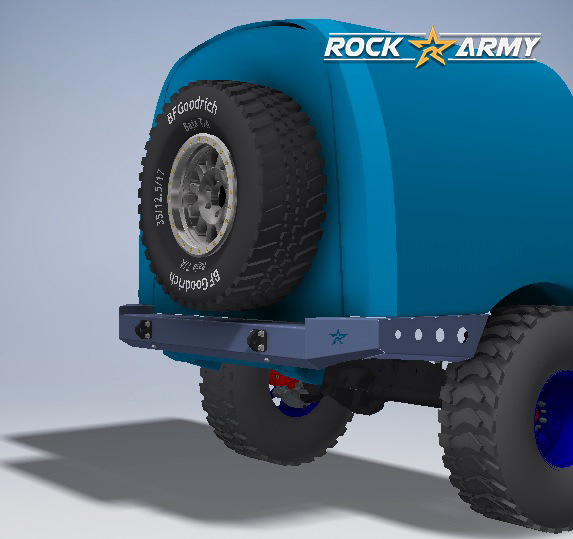

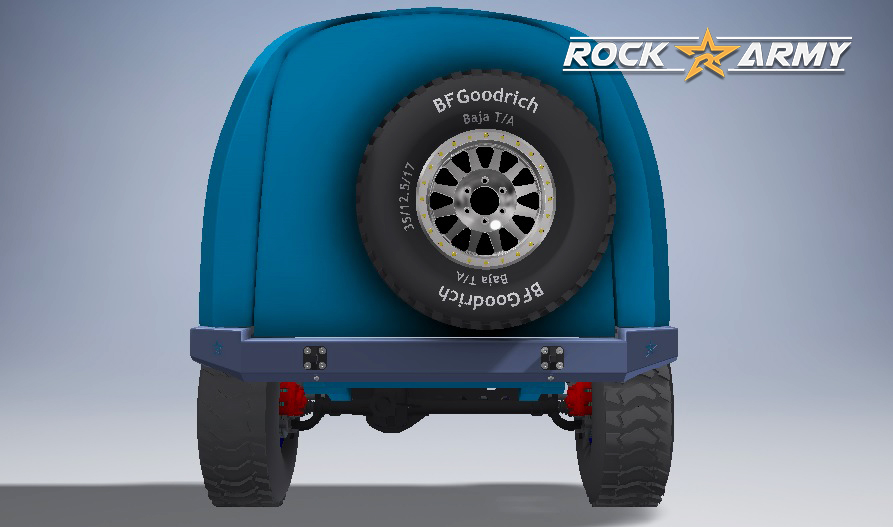

Rear view (model without winch)

The sides and the corners of the bumper have been arranged as close as possible to the body to gain the maximum exit angle, since they are the areas where it is more frequent to hit the bumper in difficult situations.

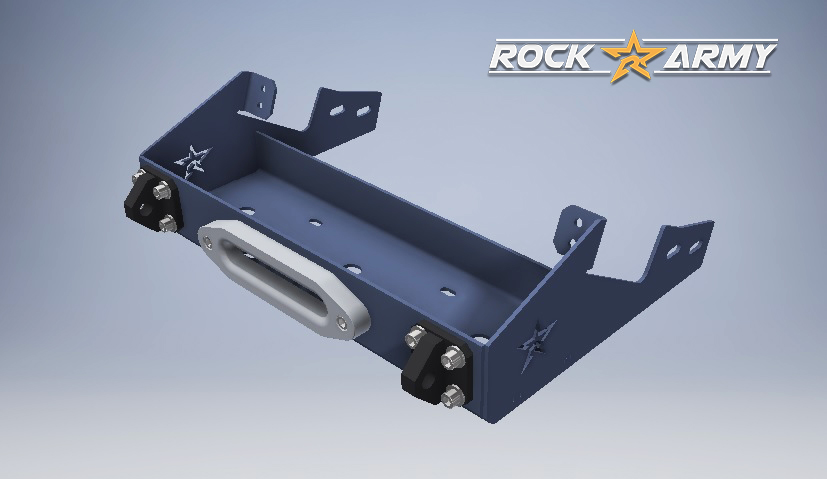

Finally, the winch support has been designed looking for a quick assembly system without having to make any modifications on the chassis and thus ensuring the viability of its approval.

It is installed using eight M12 screws. Four of them crossing the chassis side rails in the transverse direction and four others fixed to the ends of the rear crosspiece with rivet nuts. All together form a perfect subjection capable of blocking tensions in all directions.




Both the model with winch and the model without winch have been designed with the future in mind, since they are prepared to house future accessories. So, if you buy one of these models, you will have the possibility to expand the set with more accessories in the near future. Undoubtedly, an intelligent way to save in the preparation of your vehicle because, not only do you not have to invest twice in the same, but also you can expand the whole little by little in the following evolutions of your vehicle.
